Parameter

Description

Textfield

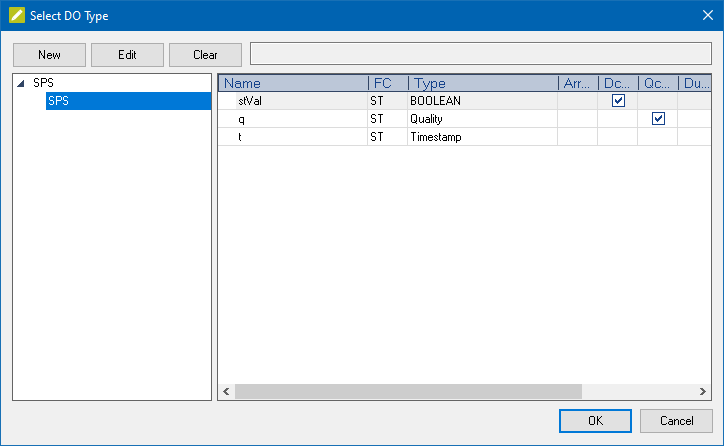

Description text for the selected Data Object Type.

Parameters

Description

New

Opens the Create New DO Type dialog.

Edit

Opens the Edit Type dialog.

Clear

Allows to delete a Data Object Type, if this is not used in the configuration.

OK

Confirmes the settings and closes the dialog.

Cancel

Closes the dialog without changes.
