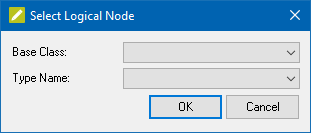

Select Logical Node dialog
|
Parameter |
Description |
|
Base Class |
Allows to select the Base Class via a drop-down menu. |
|
Type Name |
Allows to enter a new Type name. Default: Name of the selected Base Class |
Navigation
|
Parameter |
Description |
|
OK |
Accepts all changes and closes the dialog. |
|
Cancel |
Closes the dialog without changes. |
Select Logical Node dialog |
|
IEC 61131-3 Automation platform > IEC 61131-3 Programming Environment > The Workspace > Menu bar > Tools > IEC 61850 SCL Editor > Select Logical Node dialog |
|
|
