Define your module settings.

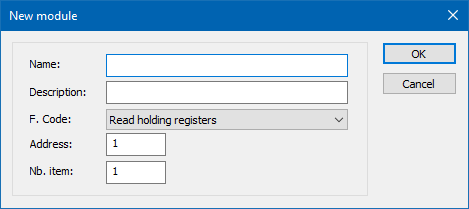

Fixed_Image

Parameter

Description

Name

Freely editable name of the new module configuration.

Description

Freely editable text.

F. Code

Function code

Examples:

  • Read holding registers
  • Write holding registers
  • Write single coil bit
  • ...

Address

Variable start address off the request block.

Nb. item

Amount of requested variables.

Hint: The same dialog will be opened for editing the module settings too, if you click in the Device dialog in the Module tab on the Edit... context menu entry.

Close dialog

Option

Description

OK

Applies settings and closes the dialog.

Cancel

Discards all changes and closes the dialog.

New module dialog
