• Access the Command Configuration Section:

Log in to the web configuration interface of the WP500 gateway.

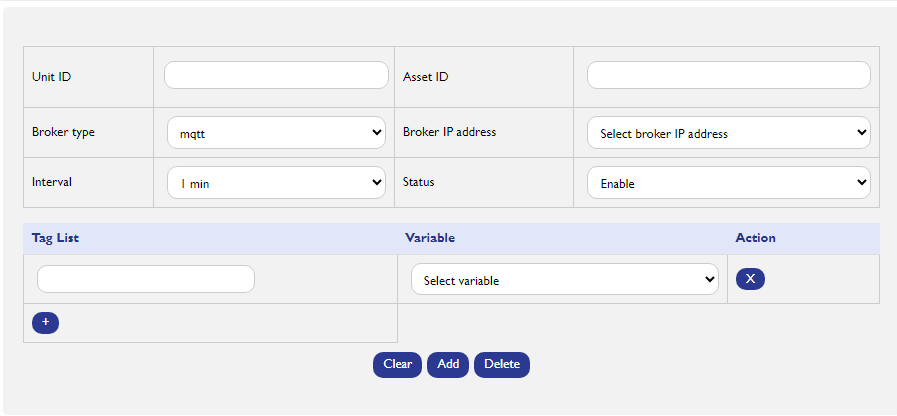

Navigate to the "Command Config Setting" section,  found under the "Services->MQTT" menu.

  •     Enter Unit ID and Asset ID:

In the provided fields, enter the Unit ID and Asset ID for the specific device or asset you want to configure alarms for.

  •     Select Broker Type:

Choose the preferred broker type for communication – either MQTT or IoT Hub.

  •     Select Broker IP Address:

Specify the IP address of the selected broker for establishing communication.

  •     Select Time Interval:

Set the time interval for alarm checks. This determines how frequently the system will monitor for alarm conditions.

  •     Enable Status:

Toggle the "Enable" switch to activate the alarm configuration for the specified unit and asset.

  •     Add Tag List:

Click on the button to create a list of variables for which alarms will be configured.

  •     Select Variable from List:

Choose the specific variable from the list that you want to configure an alarm for.

  •     Click "Add" for Alarm Configuration:

After selecting the variable, click the "Add" button to include it in the Command configuration for the specified unit and asset.
