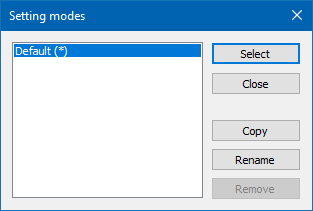

Setting modes dialog
The dialog allows to define and save different setting modes.
The default settings are predefined as Default (*) entry. This settings can be copied and renamed to be uses as base for further setting configurations.
Navigation
|
Parameter |
Description |
|
Select |
Activates the the selected setting mode. Hint: The name of the active setting mode is displayed in the Project settings dialog above the Setting modes button. |
|
Close |
Closes the dialog and saves the changes. |
|
Copy |
Opens the Copy dialog to copy and rename the selected setting mode. |
|
Rename |
Opens the Rename dialog to rename the selected setting mode. |
|
Remove |
Allows to remove the selected setting mode if the property is active. |
