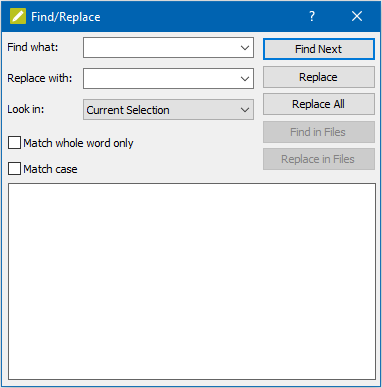

Find/Replace dialog

The dialog allows to search for specific texts and replace them. See also Cross references.

Hint: Depending on the Look in selection different buttons are available.

Fixed_Image

Parameter	Description
Find what	Textfield for the text you are searching for.
Replace with	Textfield for the new text.
Look in	Defines, where the search should take place: Current document Current Selection available for: Structured Text Ladder Diagram Free Form Ladder Diagram Function Block Diagram Hint: Select the desired area which should be used for the search in the language editor to use the Current Selection setting. Specific project All projects
Match whole word only	Looks for the search text only in whole words.
Match case	Search is case sensitive.

Navigation

Parameter	Description
Find Next	Searches for the defined text.
Replace	Changes the found text against the new text.
Replace All	Changes the found text against the new text in all found locations.
Find in Files...	Searches for the defined text in files.
Replace in Files...	Changes the found text against the new text in files.
