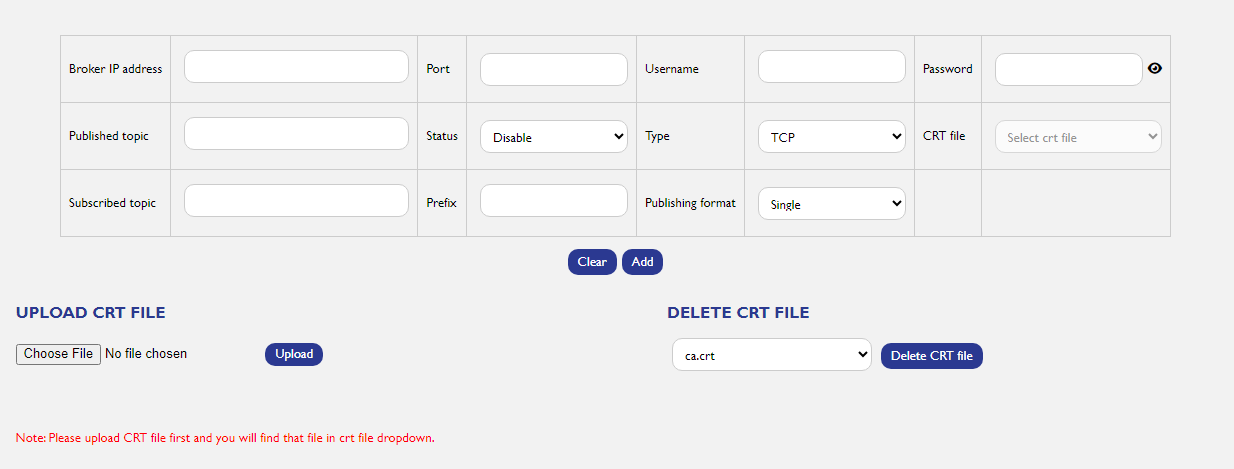

Adding MQTT Server:

To integrate an MQTT server into the configuration of your WP500 gateway, follow these step-by-step instructions:


  •      Enter IP Address:

Input the IP address of the MQTT server in the designated field.

  •      Enter Port No:

Specify the port number associated with the MQTT server.

  •      Enter Username:

Provide the username required for MQTT server authentication.

  •      Enter Password:

Input the corresponding password associated with the provided username.

  •      Enter Publish Topic:

Define the MQTT publish topic that the WP500 gateway will utilize.

  •      Enable the Port:

Toggle the port to enable it for communication with the MQTT server.

  •      Select Type (SSL/TCP):

Choose the communication type, either SSL or TCP, based on your MQTT server's configuration.

  •      Select CRT File:

To secure the communication, select the Certificate (CRT) file.

  •      Enter Subscribe Topic Name:

Specify the MQTT subscribe topic for the gateway.

  •      Select Publishing Format:

Choose the publishing format, either single or array, depending on your data structure.

  •      Click on "Add" Button:

Complete the process by clicking on the "Add" button to include the MQTT server in the configuration.


Uploading CRT File:


  •       Click on "Choose File" Button:

To upload the Certificate (CRT) file, click on the "Choose File" button.

  •      Click on "Upload" Button:

Execute the upload process by clicking on the "Upload" button.


Deleting CRT File:


  •      Click on "Delete" Button:

To remove a Certificate (CRT) file from the system, click on the "Delete" button.

The CRT file will be deleted from the system.


Managing MQTT Servers:

View MQTT Servers List:

The list of configured MQTT servers will be displayed below.

Edit and Delete Servers:

You can edit or delete MQTT servers from the list as needed.
