WP 500 station consists of individual modules, which are snapped onto a DIN rail.

A controller is the head of the station

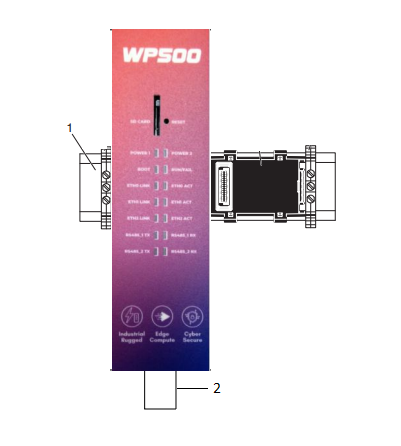

                                                           Figure 2-1 Example of an WP 500 station


                                                                1. DIN rail

                                                                2. WP 500 Module
