The physical dimensions of the WP500 Remote Terminal Unit (RTU), Operational Technology (OT), and Gateway are crucial for proper installation and integration into industrial environments. Below are the key dimensions to consider when handling the WP500 controller.

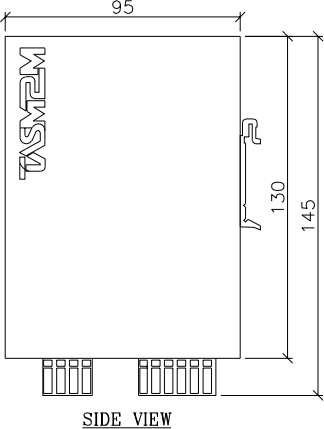

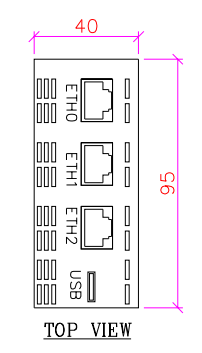

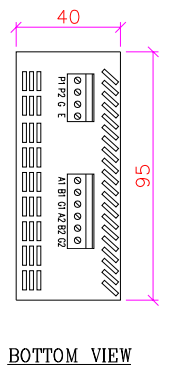

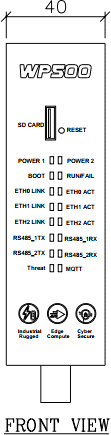

Unit Dimensions

The WP500 is designed with compactness and versatility in mind, allowing for seamless integration into diverse industrial setups. The controller dimensions are as follows:

  • Width: 40 mm
  • Height: 145 mm
  • Depth: 95 mm

These measurements provide an accurate representation of the physical footprint of the WP500, facilitating efficient placement within control panels or mounting on equipment.
